Dwin Technology yog ib lub tuam txhab CNC Router lag luam thiab cov muag khoom nyob rau hauv Suav teb, thiab tseem muaj lub koom haum kev lag luam, txais tos yuav luv nqi thiab pheej yig thiab lag luam wholesale rau peb cov nqi qis thiab cov ntaub ntawv pov thawj CE dw1325 high precision ntoo rooj cnc carving tshuab cnc router thiab kos tus nqi nrog peb.

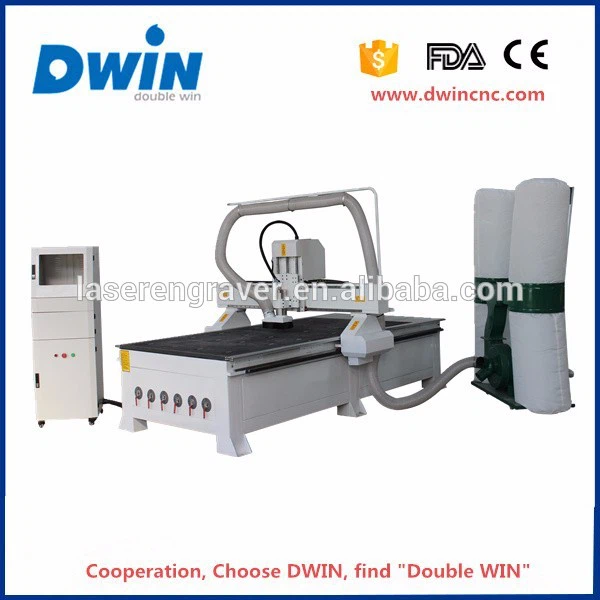

DW1325 high precision ntoo rooj CNC carving tshuab cnc router
1) Lub tshuab lub cev muaj zog, muaj lub siab, muaj kev ntseeg siab thiab ruaj khov.
2) Cov khoom siv high-precision lub pob hlau, uas txig ntseeg nkaws, kom paub tseeb tias lub tshuab lub siab tseeb.
3) Tuam Tshoj zoo tshaj plaws spindle thiab zoo HSD spindle, muaj zog txiav peev xwm, qes qis, kom lub tshuab ua haujlwm ntev.
4) Qib siab tsav tsheb kom paub tseeb tias lub tshuab kev kub ceev thiab raug ciav hlau.
5) Zoo tsim, zoo tshaj plaws khoom siv, txo cov tshuab tsis ua haujlwm.
6) Txhaum taw tes tshwj xeeb nco kom lub zeeg zuj zus thaum siv fais fab tuag, ua haujlwm rau lub sijhawm thiab lwm yam dejnum thaum muaj teebmeem fais fab tuag.
CNC carving tshuab accessories:
Parameter
Zauv | Kev piav qhia | Parameter |
1 | X, Y, Z Ua Hauj Lwm | 1300mmx2500mmx200mm |
2 | Cov lus sib tw | 1450mm × 2940mm |
3 | X, Y, Z Mus Tshaj Tawm Raws Cai | ± 0.03 / 300 hli |
4 | X, Y, Z Cov Nyiaj Taw Qhia Tseeb | ± 0.03 hli |
5 | Cov lus nto | Nqus plua plav thiab T-Qhov Chaw Nyob (Kev Xaiv: T-Cov Rooj Lus) |
6 | Ncej | Welded Structure |
7 | X, Y Qauv | Khib thiab Pinion Tsav, Hiwin Rail Tawm Bearings |
8 | Z ua qauv | Hiwin Rail Tawm Bearings thiab Pob Screw |
9 | Max. Hwj chim Siab | 3.5KW (Tsis muaj Ntxaiv) |
10 | Max. Ntaus Tus Nqi Pheej Yig | 33000mm / min |
11 | Max. Ua haujlwm ceev | 25000 hli / min |
12 | Spindle Fais fab | 3.0 / 4.5 / 6 / 7KW |
13 | Spindle Speed | 0-18000RPM |
14 | Tsav Motors | Servo System |
15 | Ua Hauj Lwm Thaj Chaw | AC380V / 50 / 60Hz, 3Phs (Option: 220V) |
16 | Hais lus hais | G Code |
17 | Kev Ua Haujlwm | DSP System (Options: Ncstudio / Syntec Software) |
18 | Computer Interface | USB |
19 | Flash nco | 512M (U Disk) |
20 | Collet | ER25 / ER32 |
21 | X, Y Tshooj Cai | <0.03> |
22 | Software Compatibility | Type3 Software, (Kev Xaiv: Artcam Software) |
23 | Khiav Kub Kub Ib Ncig | 0 - 45 Centigrade |
24 | Txheeb ze Humidity | 30% - 75% |
25 | Ntev Npaj | 3300mmX2100mmX2300mm |
26 | NW | 1750KG |
27 | GW | 1980KG |
28 | Qhov Yeem Xaiv | Cua Txias Spindle los yog Dej Txias Ntxaiv |
Syntec Control System | ||
Plua Plav Collector | ||
Lub tshuab nqus tsev twj | ||
Teb System | ||
Cua txias-txias System | ||
850W Yaskawa / 750W Panasonic Servo Motors |
CNC daim ntawv thov daim ntawv thov:
1, woodworking industries: Txwv 3-thiav yoj phaj ua, qhov rooj xauv, qhov rooj ntoo, kev ua qhov rai, cov khoom ua si video thiab cov voj voog, cov ntaub ntawv hauv computer thiab cov khoom phaj cov khoom siv.
2, kev lag luam advertising: Kev qhia tawm, cov cim logo, acrylic txiav, tsim qhov system module, ntau yam ntaub ntawv tshaj tawm txog kev tsim cov khoom zoo nkauj.
3, kev lag luam ploj tuag: Ib daim duab ntawm tooj liab, txhuas, hlau thiab lwm yam molds, nrog rau cov khoom siv marble, xuab zeb, yas ntawv, PVC yeeb nkab, ntoo ntoo thiab lwm yam tsis muaj pwm.
4, lwm yam lag luam: Ntau yam khoom loj sculpture, video carving, dav siv nyob rau hauv kev lag luam khoom noj khoom lag luam.
CNC cav ntoo qauv:
CNC carving tshuab packing:
